3PIN 5Pin 7Ppin NEMA Socket Connector Photocell controller Socket Wireless Socket

MOQ ：200 piece

Lead Time ：10 Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C,T/T,Credit Card,Western Union,Money Gram,Money Order,Pay Pal,Other

Departure Port : SHENZHEN

Product details

Supply Ability

Supply Ability：500000 piecesWarranty(Year)：3 Year

Packaging & Delivery

Length：8.5 cmWidth：8.5 cm
Height：6 cmLogistics Weight：0.100 kg/piece
Packaging：100 piece

Product Specifications

Brand name：DREAM-START

Product Description

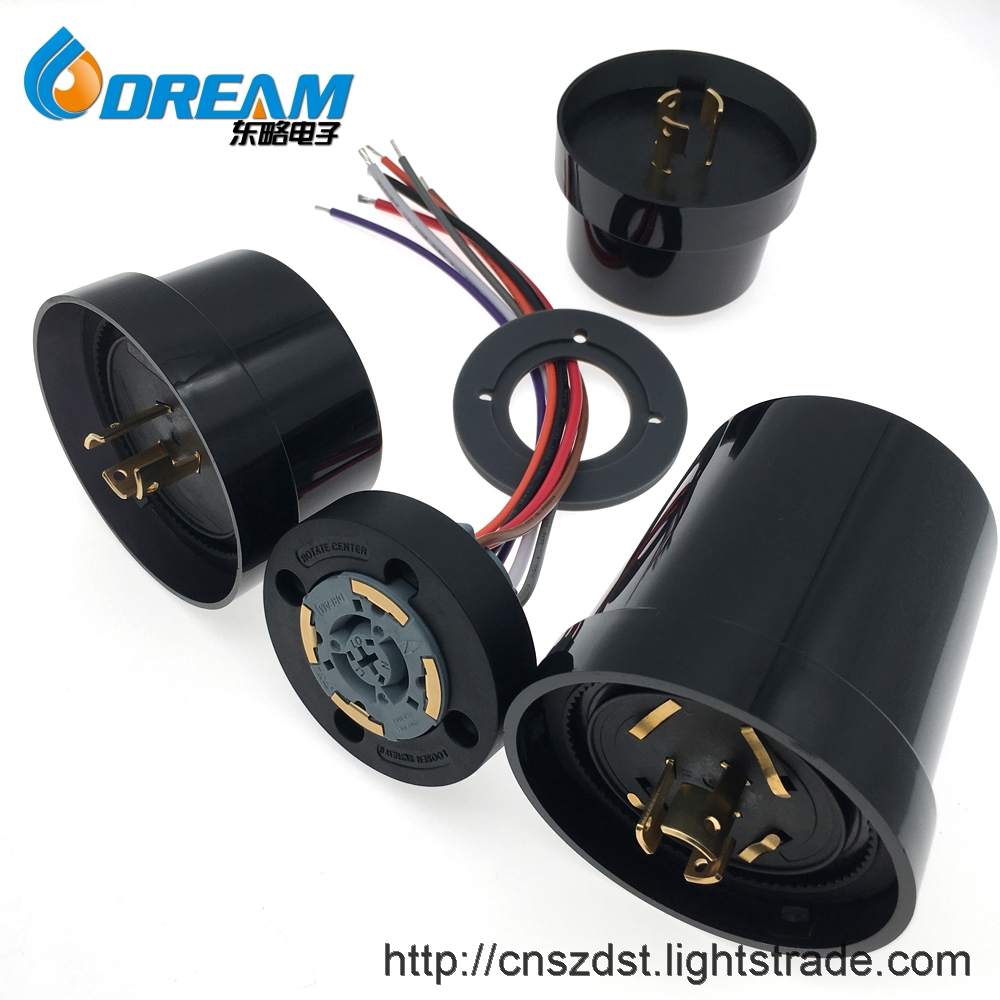

7Pin 5Ppin NEMA Socket Connector Photocontroller Socket/Wireless Socket

DR-E03 (Photocontrol) Parameters
Sensor Type	Photodiode
Rated Voltage	110V~240V AC
Wide Input Voltage Range	100V~277Vac
Working Mode	<10~20 Lux / ON , >30~60Lux / OFF,Time-delay: 2 Seconds
Load Current	15A (220Vac)
Ambient Temp	-40℃~105℃
Size	φ80.5mm * φ51.6mm(Height)
Case Material	UV resistant PC
Shell Design	It Conforms to American National Standard ANSI C136.41-2013
Safety Certification	E510435,Vol 1
Life Span	Quality Assurance for 3 Years
Applications	Street /Roadway Lighting, Photocontrol Lighting, Parking Lot Lighting, Garden Lighting, Smart City, Smart Street Light, 5G

* 【AUTOMATIC ON/OFF 】 - The photocell sensor senses sunlight, automatically turns on the light at dusk, and automatically turns off the light at dawn.

* 【EASY TO INSTALL 】 - The Dusk to Dawn light sensor just need to plug in a base, twist lock plug for quick installation.

* 【TIME DELAY FEATURE】 - A preset 2-8 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.

* 【IP65 & SURGE PROTECTION】 - IP65 waterproof rating.Surge Protection Available, help to protect the lamp from the lightening.Suitable for outdoor fittings, such as area lights, parking lot light, shoe box lights, street lights etc.

* 【WARRANTY】 - Certificate listed for high quality and safe operation. 3-Year Warranty to set your mind at ease.

The photocell control can open or close light according ambient-light, ambient-temperature and humidity cannot effect it. It's not only convenient but also practical, it can be used in the load of working all day and all night. for instant control road light,garden light etc.

The photocell control is designed with microprocessor circuits with photodiode and a surge arrester (MOV) is provided. It's quicker response with time delay of 0-3 seconds offers easy-to-test feature. further, a preset 2-8 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time. the relay has sufficient work life of over 7300cycles.

Use with TWIST-LOCK PHOTOCONTROL RECEPTACLE.(Conforms ANSI C136.41-2013)
